Now available at PrairieCoast equipment is the Farm King line-up of Tedders and Rakes. Contact our sales team using the form below to learn more and receive a quote.
|
|
Farm King Tedders
Learn about the options Farm King has to offer your operations.

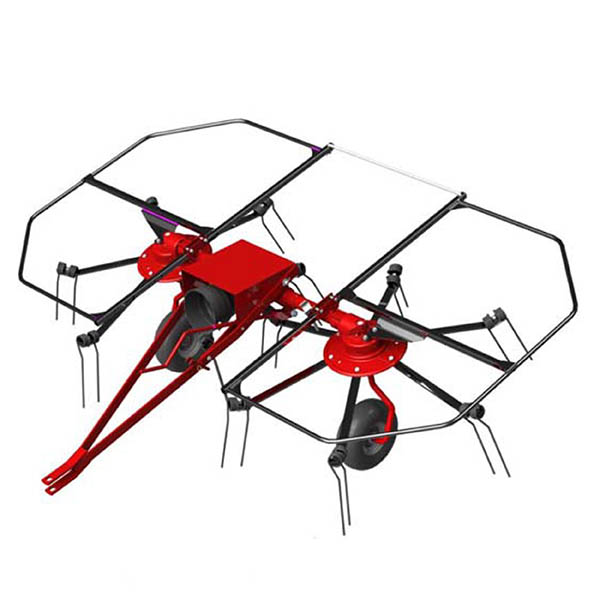

RT10 Tedder
Farm King Tedders evenly spread and mix forage so that it is uniformly dried and prepared for baling or processing. Model RT10 is ideal for smaller field structures and features a robust design for low maintenance and long life.
![RT10](/images/transparent-loading.png)
|
The unique tines on all Farm King Tedders ensure that all of your hay is picked up and distributed evenly. The tines also allow the tedder to work at a steep operating angle, without leaving hay between the rotors.
Tedding provides you with higher-quality forage and allows you to get your crop off the field faster. Farm King Tedders reduce operating costs, by working at relatively low revolutions and high driving speeds.
- Working width - 10' (310 cm)
- Transport width - 8' 2" (250 cm)
- Working speed - 9 mph (14 kph)
- Rotors / arms per rotor - 2 / 6
- Tires - 2, 3.50 x 6
- HP requirements - 20 hp (15 kW)
- PTO - 540 RPM
- Weight - 490 lb (222 kg)
|

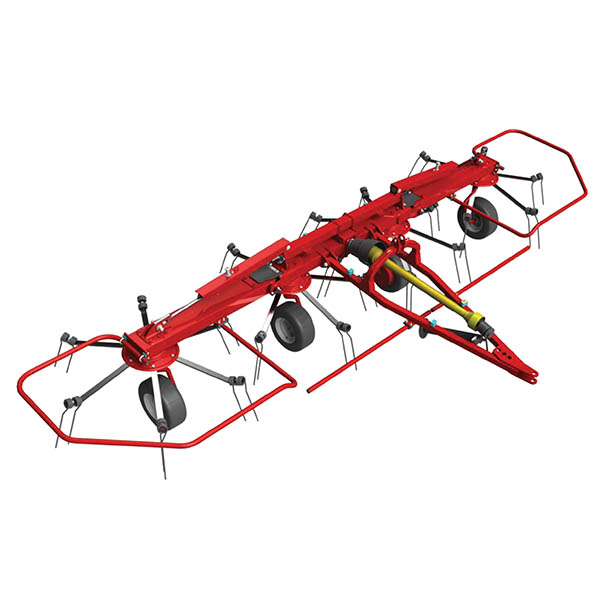

RT17 Tedder
High-capacity mounted and pull-type tedders for even spreading, aerating, and forage turning. Farm King Tedder models RT17, RT19, and RT24 feature hydraulic fold and tilts to quickly change from transport to working position from the cab.
![RT17](/images/transparent-loading.png)
|
Tedding provides you with higher-quality hay and allows you to get your crop off the field faster. Farm King Tedders evenly spread and mix forage so that it is uniformly dried and prepared for baling or processing. Flexible steel tines lightly aerate the forage without causing damage. Model RT17 is ideal for medium farms.
- Working width - 17' (520 cm)
- Transport width - 9' 2" (280 cm)
- Working speed - 9 mph (14 kph)
- Rotors / arms per rotor - 4 / 6
- Tires - 4, 16 x 6.50 x 8 ply
- HP requirements - 20 hp (15 kW)
- PTO - 540 RPM
- Weight - 1,275 lb (578 kg)
|
RT19 Tedder
![RT19](/images/transparent-loading.png)
|
Ideal for medium farms with all forms of terrain, even hills. Featuring large tires, Farm King Tedders reduce operating costs, by working at relatively low revolutions and high driving speeds.
- Working width - 19' (570 cm)
- Transport width - 10' 5" (320 cm)
- Working speed - 9 mph (14 kph)
- Rotors / arms per rotor - 4 / 6
- Tires - 4, 16 x 6.50 x 8 ply
- HP requirements - 20 hp (15 kW)
- PTO - 540 RPM
- Weight - 1,400 lb (635 kg)
|

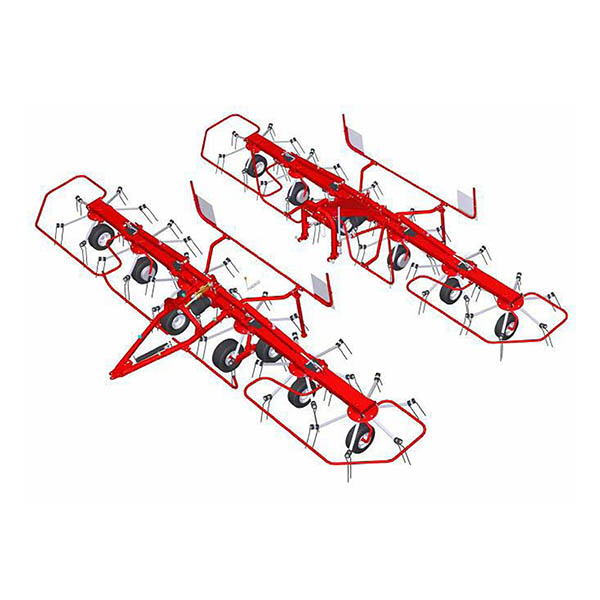

RT24 Tedder
![RT24](/images/transparent-loading.png)
|
RT24 is best suited for high-capacity operations. 3-point hitch or pull type.
- Working width - 24' (745 cm)
- Transport width - 9' 8" (300 cm)
- Working speed - 9 mph (14 kph)
- Rotors / arms per rotor - 6 / 6
- Tires - 6, 16 x 6.50 x 8 ply
- HP requirements - 30 hp (22 kW)
- PTO - 540 RPM
- Weight - 1,918 lb (870 kg)
|
![Farm King Tedders](/images/transparent-loading.png)
Farm King Rotary Rakes

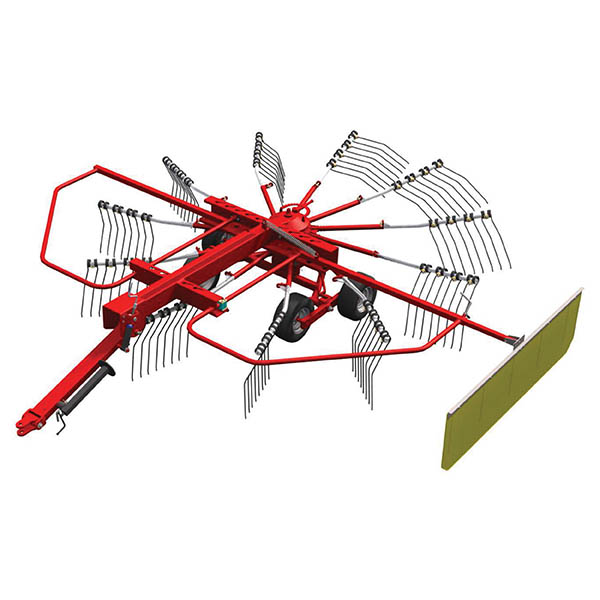

RR420 Rotary Rake
Farm King rotary rakes are made of high-quality steel that ensures great performance and durability. Specifically designed for use in smaller field structures they operate with minimal impact, processing the crop with extreme delicacy keeping the quality of the product intact, and ensuring the highest nutritional value. The RR420 provides smooth operation with 4 tandem axle pneumatic tires at 18 x 8.5 x 8 and high driving stability with a wide track tandem chassis that enables a higher speed of use.
![RR420](/images/transparent-loading.png)
|
This model excels in rougher terrain with its perfect rotor ground contour following. With a high degree of flexibility and adjustability, this is a rake that will prove smooth, fast, and durable.
Each Farm King Rotary Rake features a hydraulic lift system and adjustable height to ease fieldwork and maximize maneuverability. The adjustable front cylinder allows users to fine-tune pitch and features
removable tine arms.
- Working width - 13.8' (4.2 m)
- Transport width - 6.5' (196 cm)
- No. of arms - 11
- Ties per arm - 4, removable
- Gearbox - Sealed oil bath
- Weight - 1,411 lb (640 kg)
|

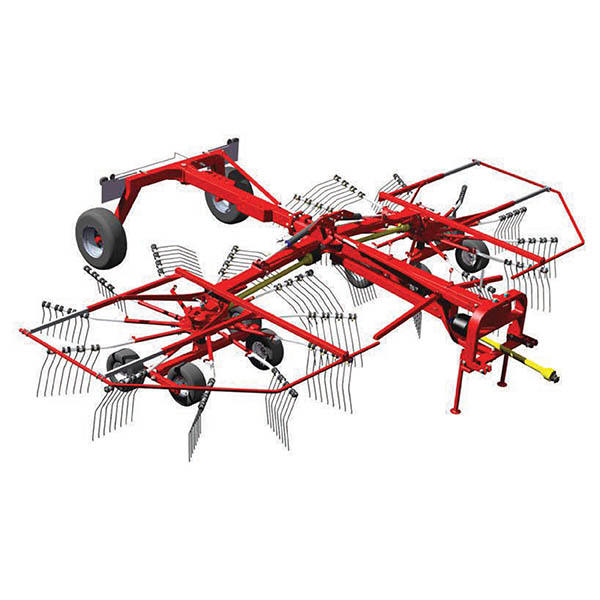

RR7700FK Dual Rotary Rake
The new Dual Rotary Rake by Farm King is a semi-mounted rake designed for larger field structures and high-volume production and is intended for use with 70-80 hp tractors. The forage is moved to the center of the two rakes which overlap one another ensuring that no material is left behind on the ground.
![RR7700FK](/images/transparent-loading.png)
|
The overlapping of rake arms ensures that no material is left behind on the field. It does an exceptionally efficient job of cleaning the field free of material without picking up the dirt, rocks, and other containments that many other types of rakes will pick up and include in the bales.
This is a wide, high-producing rake with adjustability that enables the user to control the size of the windrow that they create ensuring the best feed into whichever baler they are using.
- Working width - up to 700/780 cm (23/26 ft.)
- Transport width - 250 cm (8.2 ft.)
- No. of rakes - 22
- No. of springs - 88
- HP requirements - 70-80 hp
- Weight - 1,790 kg. (3,951 lb)
|
![Farm King RotoRake](/images/transparent-loading.png)
Contact our sales team to learn more about Farm King tedders and rakes
